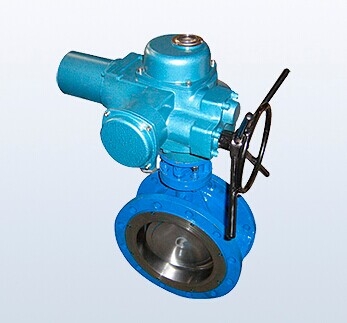

电动硬密封蝶阀D943H-16C
文章作者:admin 时间:2017-04-13 02-59-26
|
公称通径DN/mm | 尺寸/mm(1.0MPa) | L | D1 | H | H0 | L1 | L2 | Z-φd | 150 | 70 | 240 | 198 | 749 | 418 | 308 | 8-23 | 200 | 71 | 295 | 236 | 808 | 418 | 308 | 8-23 | 250 | 76 | 350 | 276 | 861 | 418 | 308 | 12-23 | 300 | 83 | 400 | 308 | 1035 | 540 | 308 | 12-23 | 350 | 92 | 460 | 340 | 1091 | 540 | 308 | 16-23 | 400 | 102 | 515 | 374 | 1162 | 585 | 375 | 16-25 | 450 | 114 | 565 | 384 | 1230 | 585 | 375 | 20-25 | 500 | 127 | 620 | 448 | 1314 | 585 | 375 | 20-25 | 600 | 154 | 725 | 490 | 1499 | 729 | 555 | 20-30 | 700 | 165 | 840 | 542 | 1598 | 729 | 555 | 24-30 | 800 | 190 | 950 | 607 | 1739 | 729 | 555 | 24-34 | 900 | 203 | 1050 | 665 | 1919 | 910 | 670 | 28-34 | 1000 | 216 | 1160 | 731 | 2078 | 910 | 670 | 28-34 | 1200 | 254 | 1380 | 842 | 2317 | 1378 | 1117 | 32-41 | 1400 | 294 | 1590 | 964 | 2562 | 1378 | 1117 | 36-48 |
|
|
公称通径DN/mm | 尺寸/mm(1.6MPa) | L | D1 | H | H0 | L1 | L2 | Z-φd | 150 | 70 | 240 | 198 | 749 | 418 | 308 | 8-23 | 200 | 71 | 295 | 236 | 808 | 418 | 308 | 12-23 | 250 | 76 | 355 | 276 | 861 | 418 | 308 | 12-25 | 300 | 83 | 410 | 308 | 1035 | 540 | 308 | 12-25 | 350 | 92 | 470 | 340 | 1091 | 540 | 308 | 16-25 | 400 | 102 | 525 | 374 | 1162 | 585 | 375 | 16-30 | 450 | 114 | 585 | 384 | 1230 | 585 | 375 | 20-30 | 500 | 127 | 650 | 448 | 1314 | 585 | 375 | 20-34 | 600 | 154 | 770 | 490 | 1499 | 729 | 555 | 20-41 | 700 | 165 | 840 | 542 | 1598 | 729 | 555 | 24-41 | 800 | 190 | 950 | 607 | 1739 | 729 | 555 | 24-41 | 900 | 203 | 1050 | 665 | 1919 | 910 | 670 | 28-41 | 1000 | 216 | 1170 | 731 | 2078 | 910 | 670 | 28-48 | 1200 | 254 | 1390 | 842 | 2317 | 1378 | 1117 | 32-54 | 1400 | 294 | 1590 | 964 | 2562 | 1378 | 1117 | 36-54 |
|
